9PX1000IRT2U

Brand: Eaton

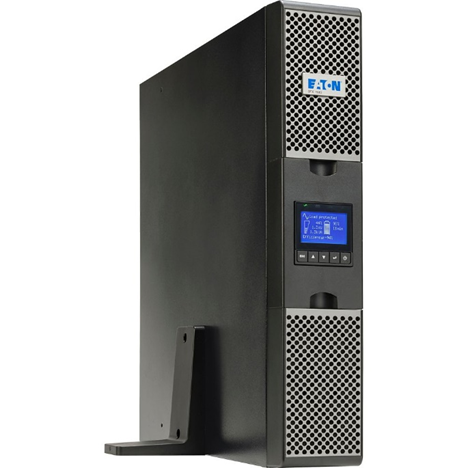

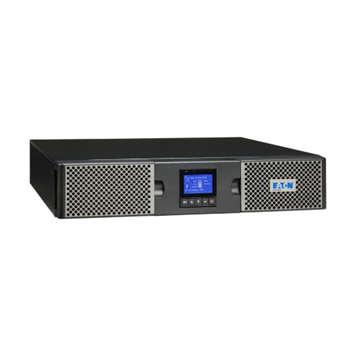

Eaton 9PX UPS, 1000 VA, 1000 W, Input: C14, Outputs: (8) C13, Rack/tower, 2U

Enquire Now

Special Features
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 4 optional EBM

General Specifications
Product Name	Eaton 9PX UPS
Catalog Number	9PX1000IRT2U
UPC	743172081407
Product Length/Depth	45 cm
Product Height	8.65 cm
Product Width	44 cm
Product Weight	17.4 kg
Compliances	CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B
Certifications	IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC, ENERGY STAR certified

Battery
Runtime Graph	-
Battery Management	ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units
Battery Replacement	Hot-swappable internal batteries and extended battery modules (EBMs)
Battery Quantity	4
Battery Rating	12 V / 7 Ah
Battery Type	Sealed, lead-acid
Extended Battery Capability	-

Electrical Output
Receptacle	(8) C13
Topology	Online/Double-conversion
Wattage	1000 W
VA Rating	1000 VA
Output Waveform	Sine wave
Voltage	230V
Output Power Factor	1
Output Nominal Voltage	230V default (200/208/220/230/240V)
Output Voltage Range	200/208/220/230/240 V +/- 1%
Voltage Distortion Output (Linear Load) - Max	3
Output Frequency	50/60 Hz
Feed Type	1

Communications
Communication	USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for output relay Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Expansion Slots	One slot for optional communication card
Ethernet Interface	No
Includes Network Card	No
Software Compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
User Interface	Multilingual graphical LCD display
Type of Interface	Other
Potential Free Switch Contact	Yes
