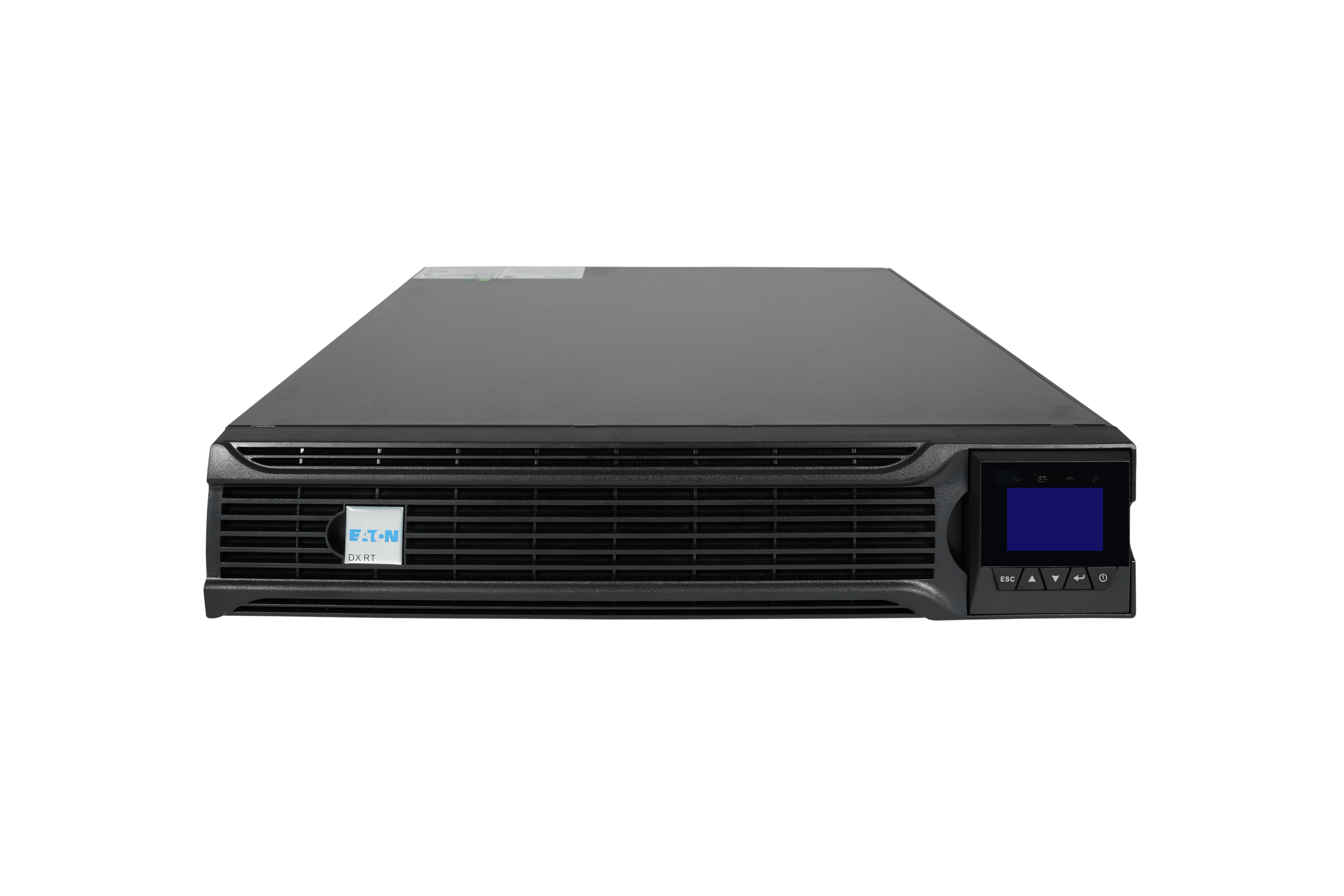

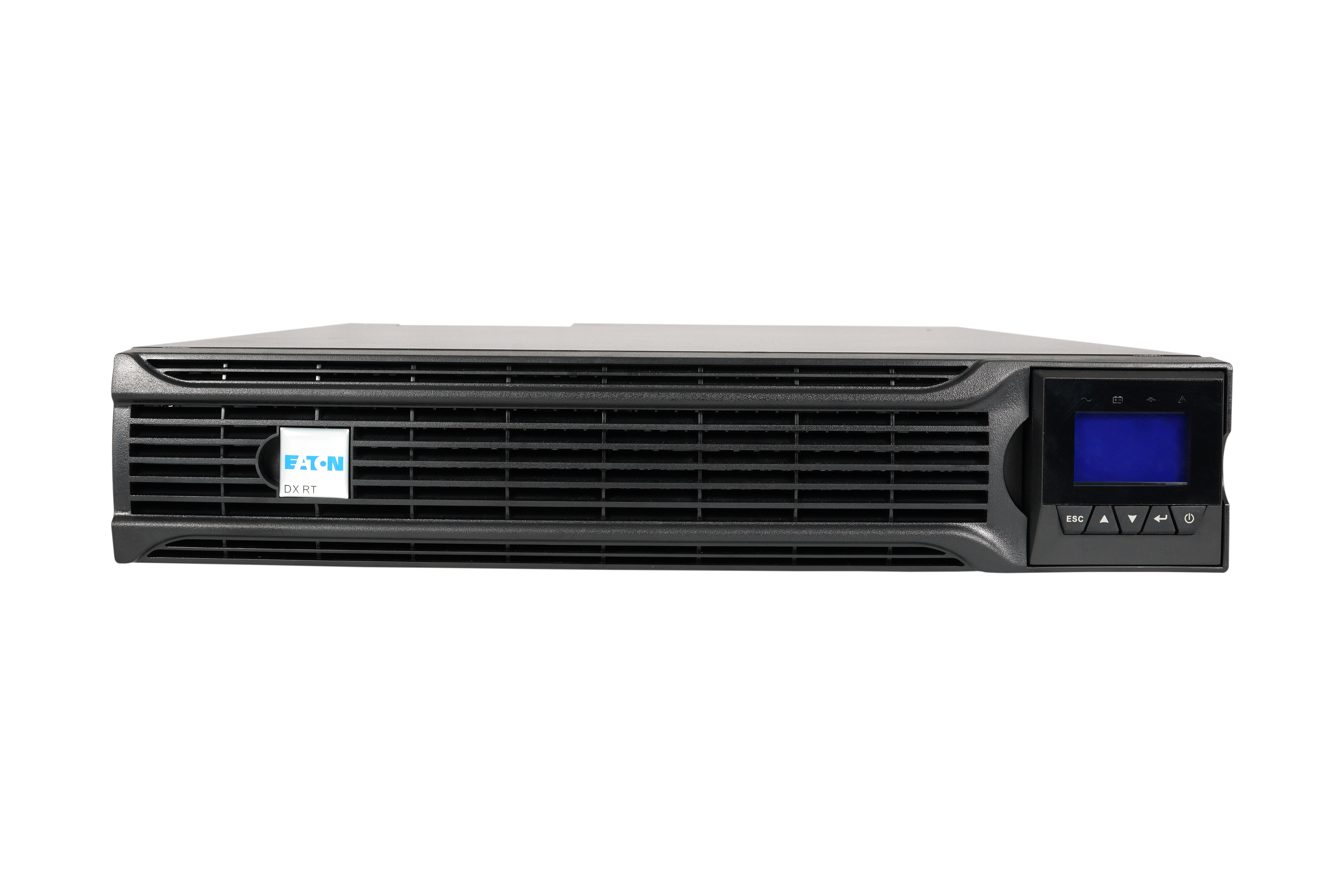

Eaton DXRT Online UPS (6-10kW)

Brand: Eaton

Eaton DX-RT is a true online double conversion Rack and Tower Convertible UPS system that affordably provides Robust, Reliable, Compact and Efficient Power Management Solution for Mission Critical Application from downtime, data-loss. Eaton DX-RT delivers more power in a limit space (2U) and saves energy cost due to it’ highly efficiency design and offers efficiency upto 95% in online mode.

Eaton DX-RT perfectly fits harsh Indian environmental and power condition and Provide much stronger protection on inrush current and it improves it’s adaptability to grid power condition

Enquire Nowshhb
  • Typical Applications
  • Networking and Server Equipment
  • Small and Micro Data Centre application
  • Bio-Metrics/Radiology and Medical Equipment
  • Security and Surveillance System/CCTV and CAMERA
  • Printer/IT-Load and PCs
  • Industrial and buildings critical power backup requirement
  • Core Features
  • IGBT Based Rectifier True Online Double Conversion
  • New Graphical LCD Display
  • Rack & Tower Convertible, Higher power density (only 2U and <600mm depth for 10K)
  • Wide Input Voltage window (110 – 275Vac) for Indian Environmental Condition
  • Double Conversion Efficiency up to 95%
  • Active Input Power Factor Correction 0.99
  • Unity Output Power Factor
  • Inbuilt OVCD (Over Voltage Cut-off Device)
  • Generator Compatible with Wide Input Voltage window
  • Frequency Range (40 Hz-70 Hz)
  • Digital Charger Technology provides 0-12 A charging current
  • Adjustable Battery numbers 16/17/18/19 and 20
  • 50/60 Hz Automatic Frequency Converter Mode
  • WINPOWER software support virtualization transfer application Intelligent Monitoring options
  • High Performance
  • kVA=kW

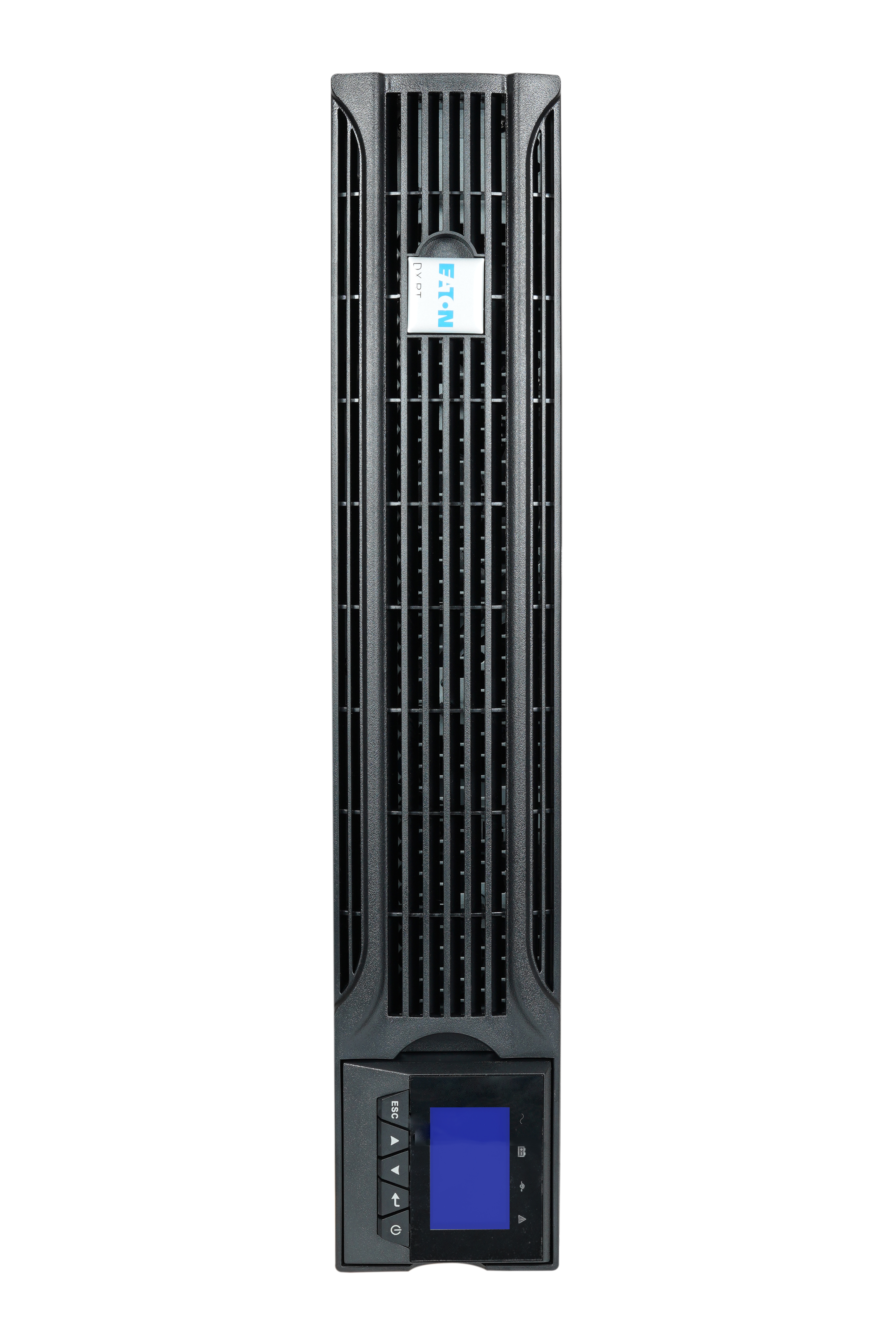

  • Rack and Tower Convertible
  • Form Factor 2U with <600 mm Depth
  • True Input PF 0.99
  • True output Unity PF 1
  • Input THDi 3%
  • Output THDv 1%
  • Higher Power Density
  • Higher Efficiency up to 95%
  • Support Critical Virtualization
  • High Reliability and Adaptability
  • Wide Input Voltage Range
  • Inbuilt Hardware Current Limit Technology
  • Upgraded Phase Lock Algorithm
  • Inbuilt Over-voltage Cut-off Device
  • Inbuilt Over Temperature Protection
  • Up to 50 Degree Celsius operation @50% Load (Specific to XL Model)
  • Better Overload Protection up to 105% Constant

Specification

Model Name DXRT6K-IN DXRT6KS-IN DXRT10K-IN DXRT10KS-IN
Catalog Number 9104-1229KX 9104-1229KXS1 9104-1229KXT1 9104-1229KXTS1
UPC Code 743172097103 743172097080 743172097097 743172097110
Input Characteristics
Acceptable Input Voltage 110VAC-275VAC
Phase Single phase with ground
Input voltage range to take 50% load 110VAC-275VAC
Input voltage range to take 100% load 160VAC-275VAC
Input Current Limit 46.5 A
Input Power Factor ≥ 0.995
Input Frequency Range 45-55Hz / 54-66Hz (extendable to 40-70Hz when load < 60%)
Input Protection Upstream breaker
Generator Set 1.5 x UPS Rating Power
Output Characteristics
Power (VA) max 6000 6000 10000 10000
Power (W) max 6000 6000 10000 10000
Power Factor 1.0
Waveform Pure sine wave
Nominal Voltage 208/220/230/240V
Voltage Variation <1% THD linear load
<5% (non-linear load)
Synchronization Range 45-55Hz / 54-66Hz (extendable to 40-70Hz when load < 60%)
Full Load Efficiency
Line mode with battery full charged 96% @ 230V output with typical load
eCO mode 98%
Battery Characteristics
Inner Battery Rating/Type 12V/7AH*16 (adjustable) NA 12V/9AH*16 (adjustable) NA
External Battery Connection Connector
Back-up Time (50% load) 11 minutes typical / 8 minutes typical /
Back-up Time (70% load) 6.5 minutes typical / 5 minutes typical /
Back-up Time (full load) 4.5 minutes typical / 3 minutes typical /
DC Voltage 192VDC (192V-240V adjustable)
Charger Current Default 1.4 A (0-14 A adjustable) Default 4.0 A (0-12 A adjustable) Default 2.0 A (0-12 A adjustable) Default 4.0 A (0-12 A adjustable)
Floating Voltage Phase 13.65V/c
Charging Time 3 hours to 90% with internal battery
Features
eCO Mode YES
Battery Capacity Calculation YES
Fan Speed Control YES
Frequency Converter Mode (CVCF) YES, 60% load factory operation
Maintenance Bypass Switch YES
Parallel Optional (up to 3 units)
Mechanical & Environmental Characteristics
WxHxD (mm) 438*86*573 438*86*573 438*86*573 438*86*573
Net Weight (kg) 13 13.1 14.7 15
Wheels NO
Operating Temperature Range 0°C ~ 40°C (+40°C for 50% load)
Humidity 0 ~ 95% (No condensing)
Audible Noise (@75% load, charger current 12A) ≤50dB
