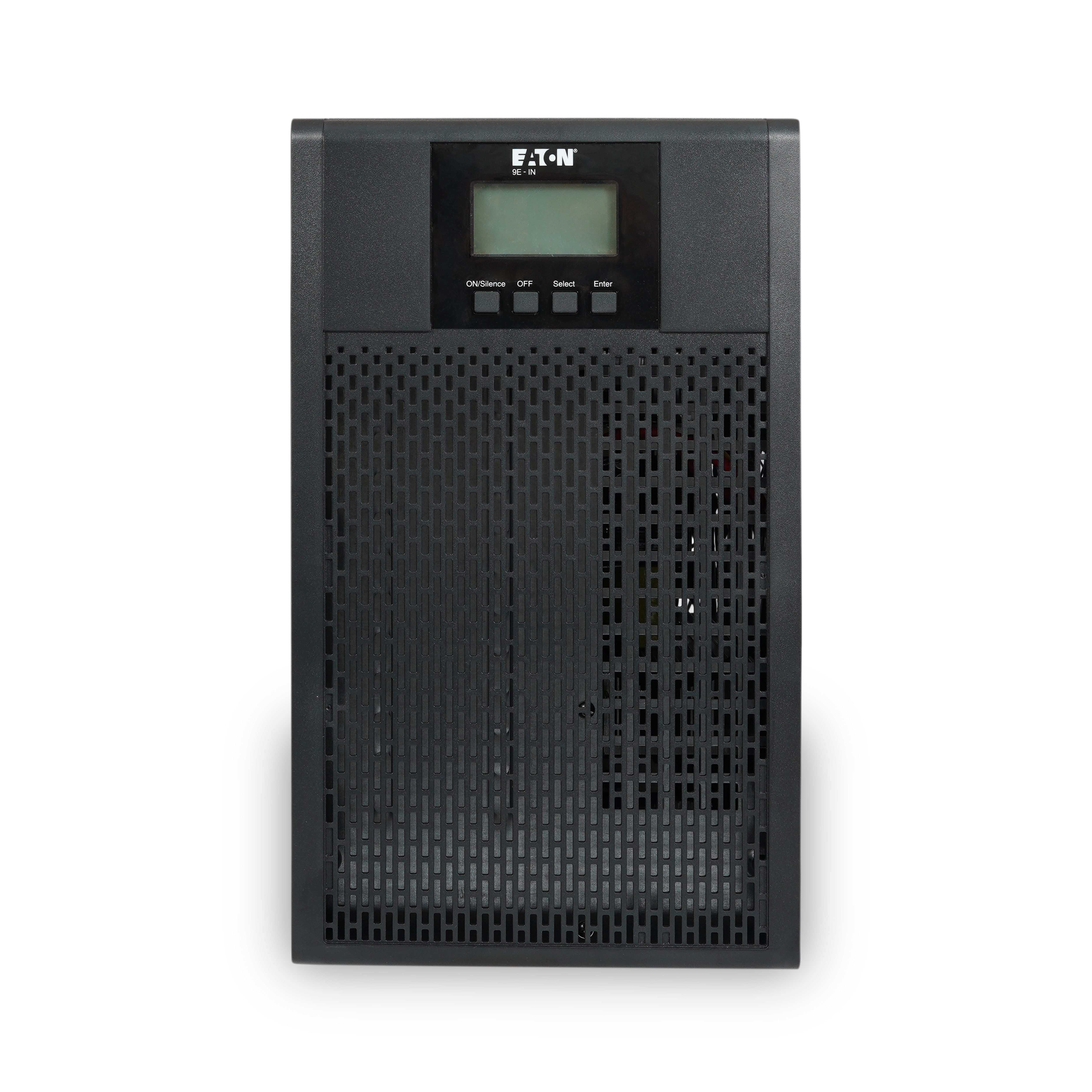

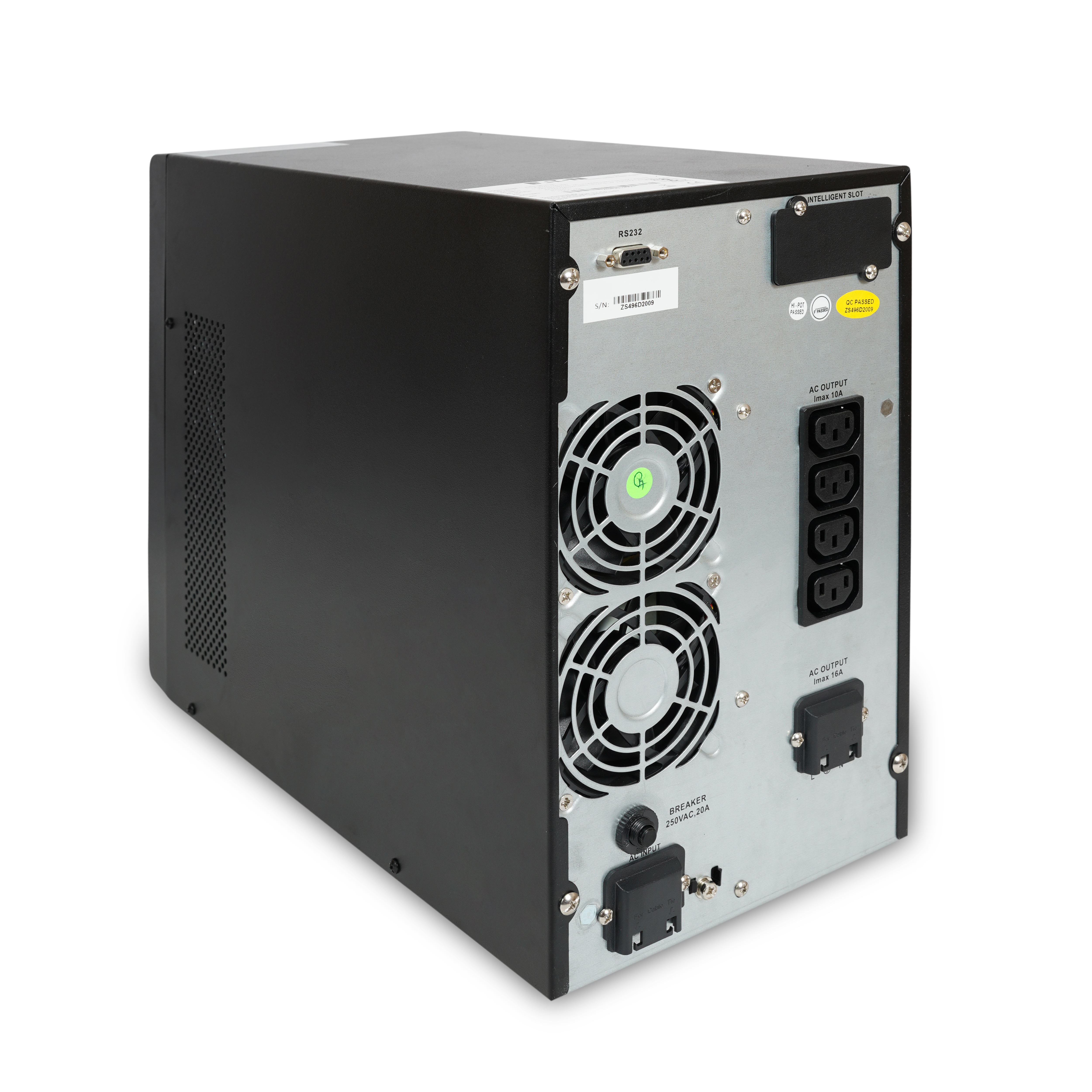

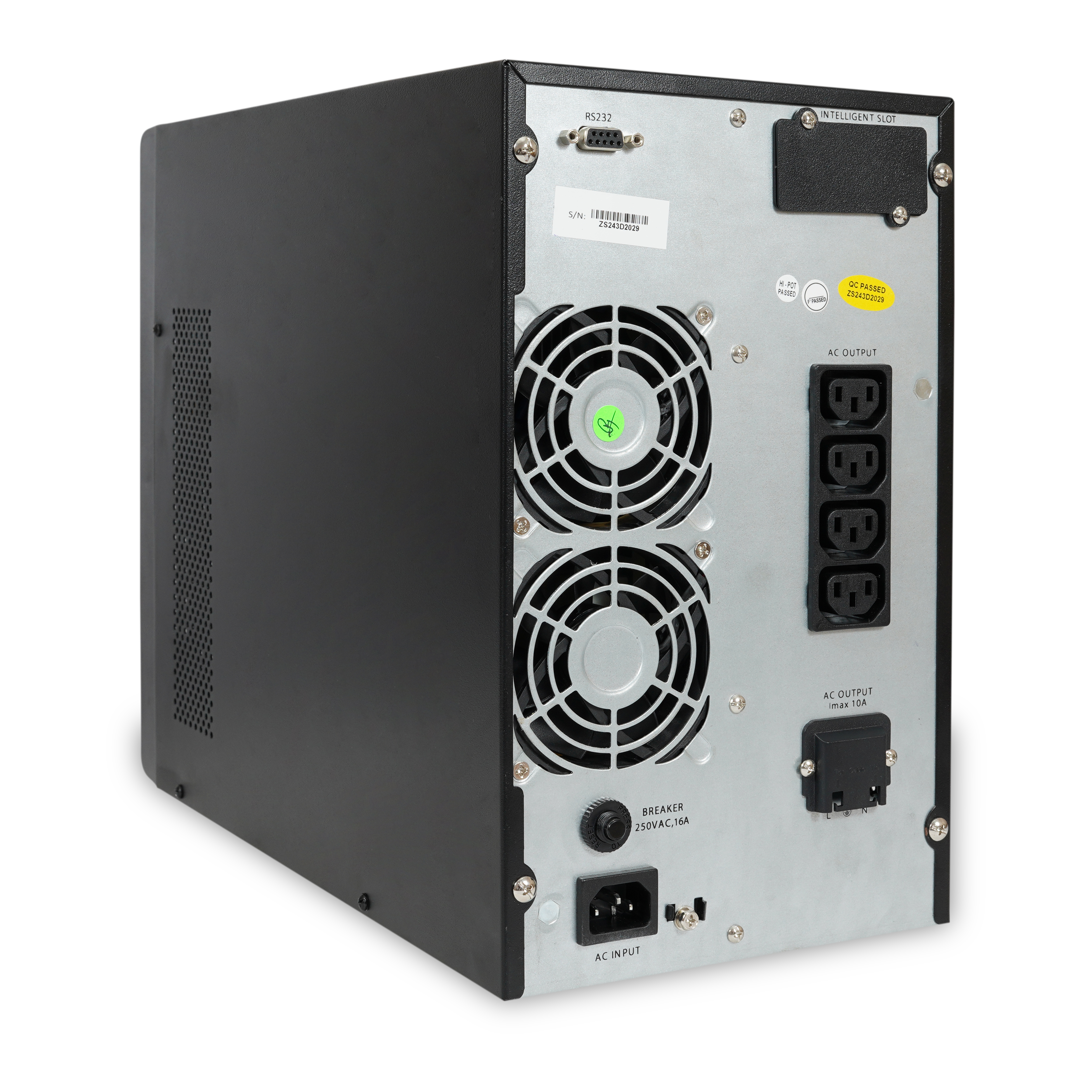

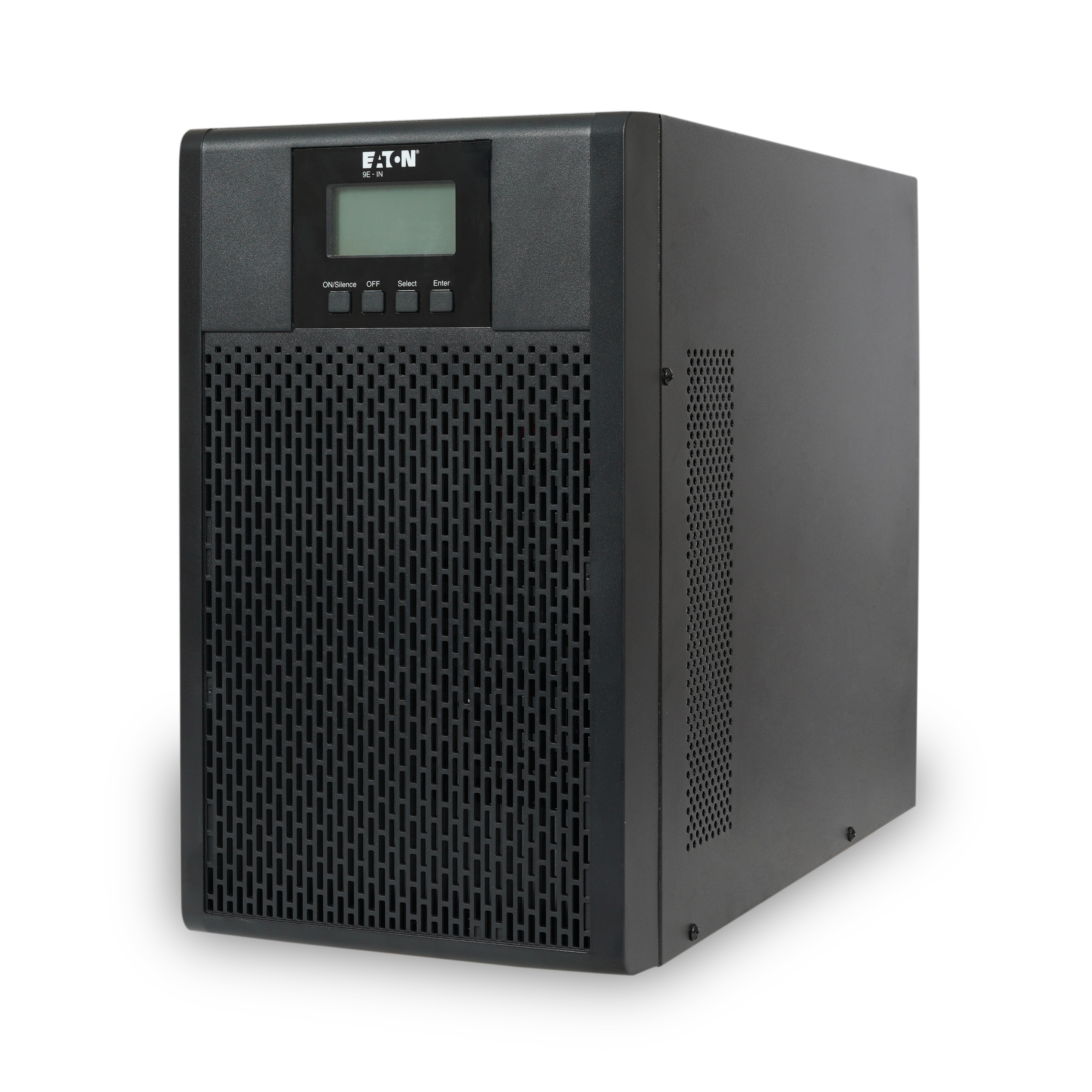

Eaton 9E IN Online UPS (1000-3000VA)

Brand: Eaton

UPS System On Line UPS

Eaton 9E-IN (1-3 kWa)

Eaton 9E IN is a true online double conversion UPS system that affordably provides Robust, Reliable, Compact and Efficient Power Management Solution for Mission Critical Application from downtime, data-loss. Eaton 9E-IN delivers more power in a limit space and saves energy cost due to it’ highly efficiency design and offers efficiency > 91% in online mode. Eaton 9E-IN perfectly fits harsh Indian environmental and power condition and Provide much stronger protection on inrush current and it improves its adaptability to grid power condition

Enquire Now

Typical Applications
Work from home – Routers, Laptop, desktop and other appliances
Networking/Server/Storage
Wiring Closets
Security and Surveillance System
Industrial Automation Control
Laboratory Equipment
ATM/Telecom/Railway Signaling
Core Features
IGBT Based Rectifier True Online Double Conversion Robust Design
Wide input voltage range: 160~300VAC @ 100% load (linearly derating to 50% load @ 100VAC input)
Generator Compatible with Wide Input voltage window
Double Conversion Efficiency >91% & ECO mode efficiency up to 98%
100% load @ 0~40°C operating temperature
Active Input Power Factor Correction 0.99
O/P power factor 0.9 (O/P power factor 0.8 for long backup model)
Inbuilt OVCD (Over Voltage Cut-off Device)
Fully conform coated PCBA adaptable to harsh environment
Offer terminal blocker on 2K/3K rating to connect to big capacity equipment
Digital Charger Technology provides 02-10 A charging current
Easy understanding LCD for convenient installation setup
WINPOWER software supports virtualization transfer application Intelligent Monitoring options
High Performance
True Online Double Conversion
True Input PF 0.99
True Output PF 0.8
Output THDv 2%
Higher Power Density
Higher Efficiency up to 98% in ECO Mode
Support Critical Virtualization
High Reliability and Adaptability
Wide Input Voltage Range 110 to 300 Vac
Inbuilt Hardware Current Limit Technology
Upgraded Phase Lock Algorithm
Inbuilt Over-voltage Cut-off Device
Inbuilt Over Temperature Protection
Up to 50 Degree Celsius operation @50% Load (Specific to XL Model)
Better Overload Protection up to 105% Constant
High Flexibility and Availability
Adjustable Charging Current 2A-10 Amps
Better Short Circuit Handling Capacity
Auto Fault Recovery
Conformal Coated Boards
More Accessories

Specification

Specification	Details
INPUT Characteristics
Acceptable Input Voltage	100VAC-300VAC
Phase	Single phase with ground
Transfer Voltage Range (100% load)	100VAC-300VAC (50% load)
Nominal Input Current (rms)	3.5A (Eaton 9E-IN 1000XL), 7.3A (Eaton 9E-IN 2000XL), 11.6A (Eaton 9E-IN 3000XL)
Input Frequency Range	45-55Hz / 54-66Hz
Input Protection	Breaker
OUTPUT Characteristics
Output Power (VA) max	1000, 2000, 3000 VA
Output Power (W) max	800, 1600, 2400 W
Output Power Factor	0.8 (XL models), 0.9 (standard models)
Output Nominal Voltage	200VAC/208VAC/220VAC/230VAC/240VAC
Output Frequency Slew Rate	1 Hz/s
BATTERY Characteristics
DC Voltage	36VDC (Eaton 9E-IN 1000XL), 72VDC (Eaton 9E-IN 2000XL), 96VDC (Eaton 9E-IN 3000XL)
Leakage Current	< 300uA (Eaton 9E-IN 1000XL), < 150uA (Eaton 9E-IN 2000XL and 3000XL)
Communication and Interface
RS232	Yes
SNMP Slot	Yes
MECHANICAL Characteristics
WxHxD (mm)	102X237X360 (Eaton 9E-IN 1000XL), 102X237X390 (Eaton 9E-IN 2000XL and 3000XL), 144 x 228 x 356 (Eaton 9E-IN 1000), 190 x 327 x 399 (Eaton 9E-IN 2000 and 3000)
Net Weight	3.8 kg (Eaton 9E-IN 1000XL), 6.0 kg (Eaton 9E-IN 2000XL), 6.1 kg (Eaton 9E-IN 3000XL), 9.2 kg (Eaton 9E-IN 1000), 17.4 kg (Eaton 9E-IN 2000), 22.7 kg (Eaton 9E-IN 3000)
