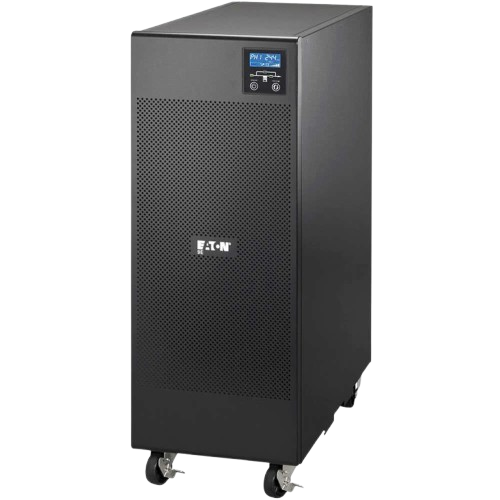

Eaton Make 1 - 10 KVA 1:1 Phase On-Line UPS With Internal Batteries - 9E Series
Brand: Eaton
UPS System On Line UPS
Eaton 9E-IN (6-10 kW)
New Eaton 9E-IN is a true online double conversion UPS system that affordably provides Robust, Reliable, Compact and Efficient Power Management Solution for Mission Critical Application from downtime, data-loss. Eaton 9E-IN delivers more power in a limit space and saves energy cost due to it’ highly efficiency design and offers efficiency upto 95% in online mode. Eaton 9E-IN perfectly fits harsh Indian environmental and power condition and Provide much stronger protection on inrush current and it improves it’s adapatability to grid power condition
Product Performance and its Benefits
Specification
| Specification | Details |
|---|---|
| Output Capacity (KVA) | 10 KVA |
| Output Capacity (KW) | 10 KW |
| Output Power Factor | 1 Power Factor |
| Output Phase | 1 Phase |
| Output Voltage | 230 Volt |
| Other Output Voltage | 208 Or 240 Volt |
| Efficiency at Full Load | > 95% |
| Output Voltage Distortion | < 1% |
| Output Frequency (sync to mains) | 50/60Hz +/- 3Hz |
| Load Crest Factor | 3:1 |
| Output Voltage THD | < 3% |
| Transfer Time | < 0 ms |
| Output Waveform Type | Sine Wave |
| Output Connections | Hard Wire 3 Wire (1PH+N+G) |
| UPS Parallel Upto | 3 Nos. |
| Flexible Battery Option | |
| Isolation Transformer | |
| Paralleling Options | Yes |
| Rack Mounting Kit | Not Available |
| Paralleling Kit for Synchronizing | Optional |
| Input Specification | |
| Input Voltage | 230 Volt |
| Other Input Voltage | 220 Or 240 Volt |
| Input Phase | 1 Phase |
| Input Frequency | 50/60Hz +/- 3Hz |
| Input Voltage Range (Output Derated) | 110 - 275 Volt |
| Input Voltage Range for Main Operations | 160 - 275 Volt |
| Input Frequency Range | 45 - 55 Hz |
| Input Power Factor | > 0.99 None |
| Input Connections | Hard Wire 3 Wire (1PH+N+G) |
| Batteries & Runtime | |
| Battery DC Bus | 192 - VDC |
| Maximum Charger Capacity | 1 Amp. |
| Battery Position Option | Internal |
| Internal Battery Capacity (VAH) | 1728 VAH |
| Battery Type Compatibility | SMF Battery |
| Approved Battery Capacity (AH) | 7 Amp. |
| Communication & Management | |
| Control Panel | Graphical LCD Display |
| SNMP Management | Optional |
| Power Management Software | In-Built |
| Audible Noise at 1 Meter from Surface of Unit | < 55 Decibel |
| Physical | |
| Maximum Height | 589 mm |
| Maximum Width | 225 mm |
| Maximum Depth | 452 mm |
| Net Weight | 60.3 kg |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Operating Relative Humidity | 0 - 95 % RH |
| Other Specifications | |
| Technology | Double Conversion Online |
