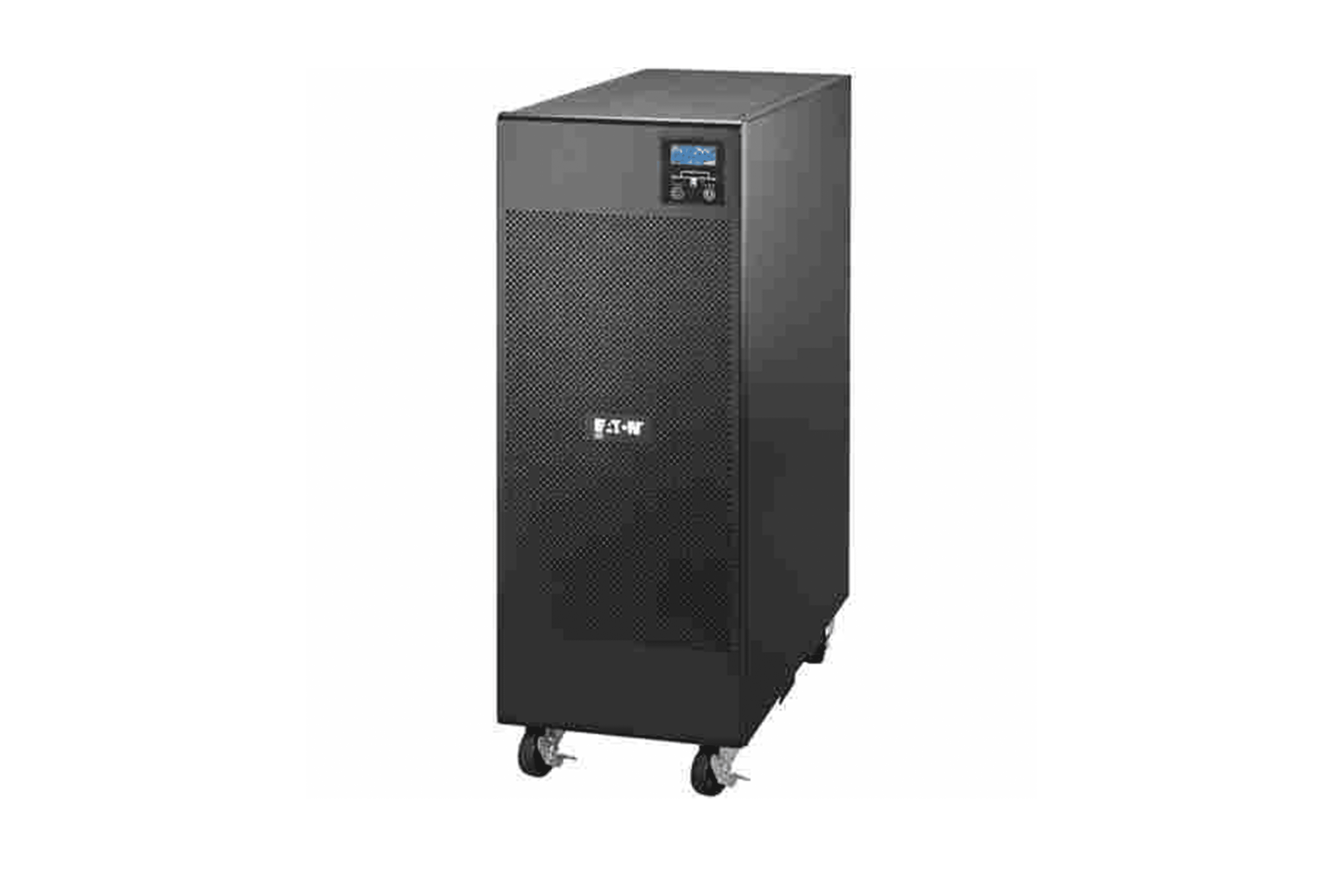

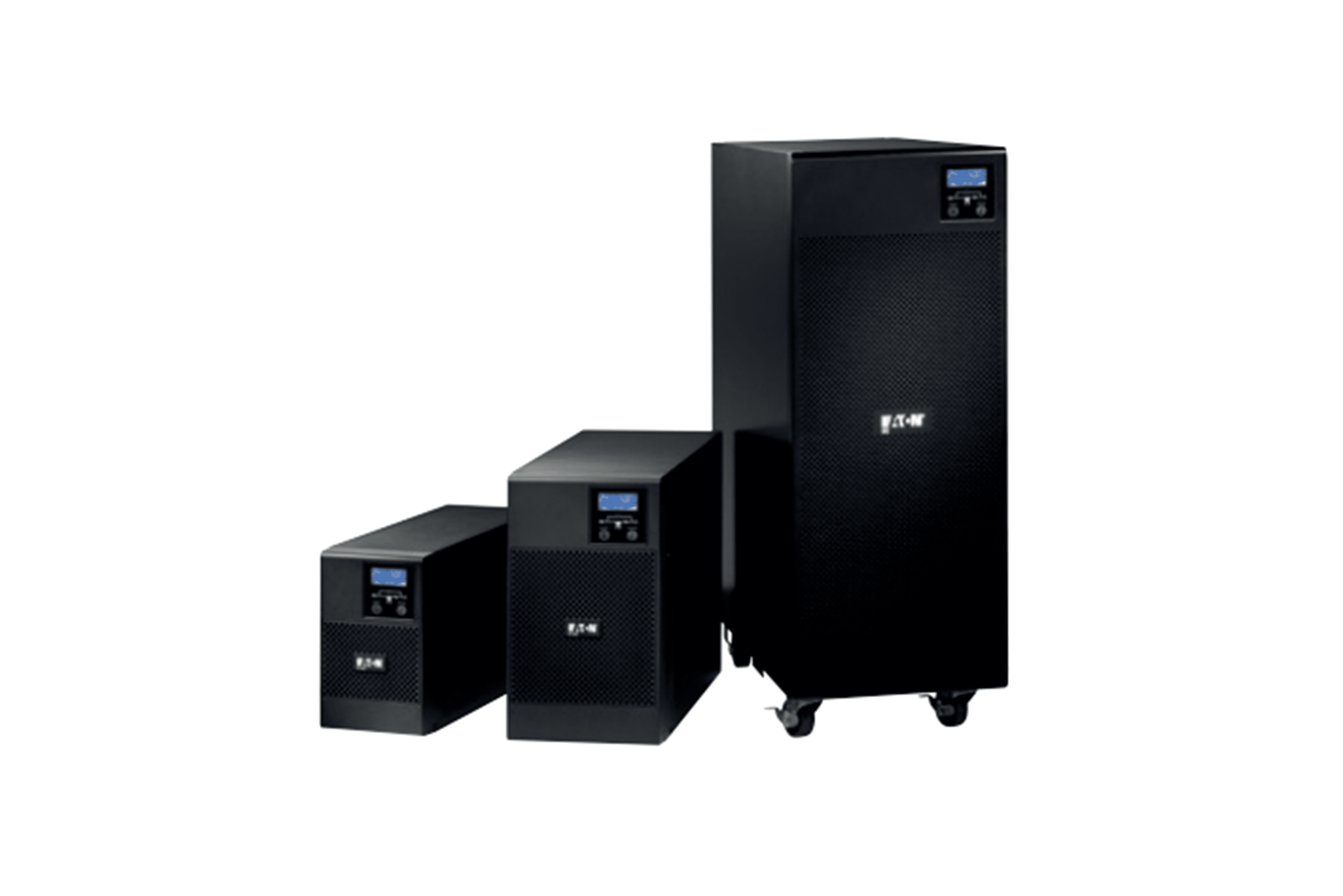

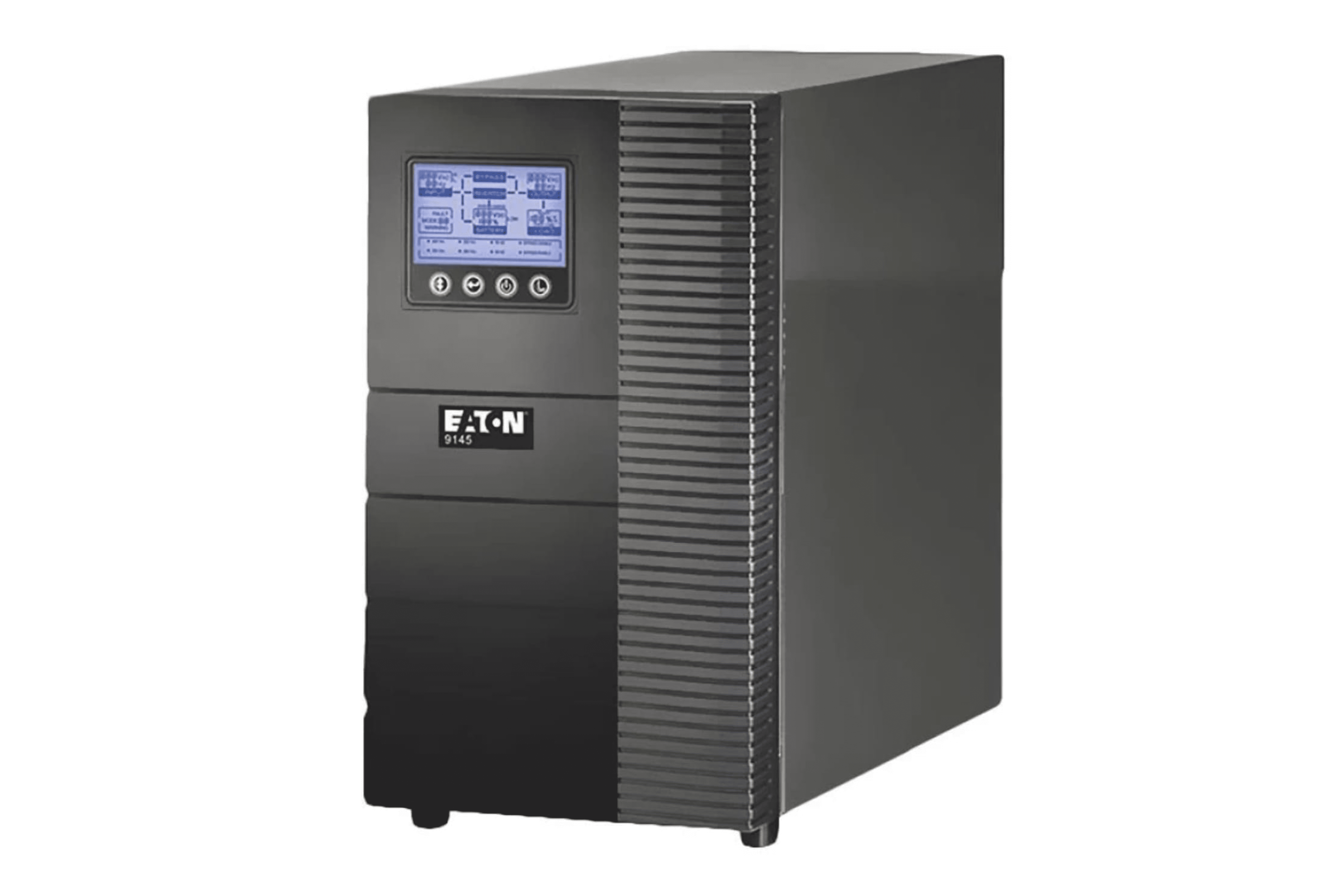

The Eaton 9E constantly monitors power conditions and
regulates voltage and frequency due to the online double
conversion topology.Power more servers than most similar UPSs due to
a 0.8 power factor.Trust a leading manufacturer with decades of experience and
high quality standards: CE compliance certified by external
agency (CB report from the TUV).Get clear information on the UPS’ status and measurements
(load level, battery level, input/output voltage and frequency)
on a single screen with the new LCD interface.asily communicate with the UPS through USB, RS232 serial
or over the network with the optional network card
(Network-M2). Relay cards or ModBus cards are also available.Eaton 9E is compatible with Eaton IPM Editions Software
which permits to integrate all major operating systems, leading
virtualisation environments and cloud orchestrations tools.The internal bypass allows service continuity in case of an
internal fault. A maintenance bypass is also available as
standard for easy maintenance of the UPS without powering
down critical systems.Make your installation more flexible with a combo input
(3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA.Extend runtime as you like by adding up to 4 external battery
modules (EBM). For extra-long runtime, XL models with internal
supercharger are also available at 3kVA, 10kVA and 20kVA.
.png)
DSP-controlled systemNear unity Power FactorSmaller footprint areaIntelligent battery charging managementAdvanced communication - RS 232Ergonomic design and silent functioningHigh value proposition and durability2 years warranty for UPSBuilt-in battery: 1 year Warranty. External battery: 2 years Warranty.| TECHNICAL SPECIFICATIONS | 1KVA | 2KVA | 3KVA/3KVA XL | 6KVA 1:1 | 10KVA 1:1 AND 3:1 | 15KVA 1:1 AND 3:1 | 20KVA 1:1 AND 3:1 |
|---|---|---|---|---|---|---|---|
| Rating (VA/W) | 1kVA/0.8kW | 2kVA/1.6kW | 3kVA/2.4kW | 6kVA/4.8kW | 10kVA/8kW | 15kVA/12kW | 20kVA/16kW |
| Format | Tower | ||||||
| Electrical Characteristics | |||||||
| Technology | Online double conversion | ||||||
| Input voltage | 208/220/230/240V | 220/230/240V | |||||
| Input voltage range without using batteries | 176-300V without derating (up to 100-300V with derating) | 176-276V without derating (up to 110-276V with derating) | |||||
| Output voltage/THDU | 208V*/220V/230V/240V ±1%, THDU: less than 2% | 220V/230V/240V ±2 %, THDU less than 3% | |||||
| nput frequency range | 40Hz-70Hz, 50/60 Hz autoselection | 45Hz-66Hz, 50/60Hz autoselection | |||||
| Efficiency | Up to 91% in Online mode | Up to 93% in Online mode, 97% in ECO mode | |||||
| Overload capacity | 105%-130% : 60s, 130%-150% : 10s, >150% : ≥ 300ms | 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms | |||||
| Connections | |||||||
| Input | IEC C14 | IEC C14 | IEC C20 | Terminal block | |||
| Outputs | 4 x IEC C13 | 6 x IEC C13 | 6 x IEC C13 + 1 x IEC C19 | Terminal block | |||
| Typical backup times at 50% and 75% load** | |||||||
| 9E | 12/5 min | 16/10 min | 13/7 min | 20/12 min | 15 min | 16 min | 15/9 min |
| 9E + 1 EBM | 79/48 min | 49/32 min | 75/47 min | 60/36 min | 38/26 min | 27/19 min | |
| 9E + 4 EBM | 243/173 min | 173/110 min | 222/140 min | 170/110 min | 117/76 min | 82/54 min | |
| Communication | |||||||
| Communication ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) | ||||||
| Communication slot | 1 slot for Network M2, ModBus-MS or Relay-MS cards | ||||||
| Software | Eaton IPM Editions Software | ||||||
| Operating conditions, Standards and Approvals | |||||||
| Operating temperature | 0 to 40°C | ||||||
| Noise level | less than 37 dB @ typical load | less than 55dB @ typical load | |||||
| Safety | IEC/EN 62040-1 | ||||||
| EMC, Performance | IEC/EN 62040-2 | ||||||
| Approvals | CE, CB report (TUV) / EAC | ||||||
| Dimensions D x H x W / Weight | |||||||
| UPS Dimensions (mm) | 356 x 228 x 144 | 399 x 330 x 190 | 399 x 330 x 190 | 612.9 x 708.5 x262.4 | 612.9 x 708.5 x262.4 | 706 x 815.5 x 350 | 706 x 815.5 x 350 |
| UPS Weight (kg) | 9.5 | 22.4 | 24.2 | 68 | 85.4 | 145.3 | 159.9 |
| EBM dimensions (mm) | - | 399 x 330 x 190 | 399 x 330 x 190 | 579.4 x 708.5 x 262.4 | 579.4 x 708.5 x 262.4 | 579.4 x 708.5 x 262.4 | 579.4 x 708.5 x 262.4 |
| EBM weight (kg) | - | 35.8 | 35.8 | 105.5 | 132 | 132 | 132 |
| UPS with supercharger (and no batteries) dimensions (mm) | - | - | 399 x 330 x 190 | - | 612.9 x 708.5 x 262.4 | - | 706 x 815.5 x 350 |
| UPS with supercharger (and no batteries) weight (kg) | - | - | 7.9 | - | 28.9 | - | 47.8 |
| Customer Service & Support | |||||||
| Warranty | 2 years | 2 years | 2 years | 1 years | 1 years | 1 years | 1 years |
* 10% derating @ 208V
** Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc
The Eaton 9E constantly monitors power conditions and
regulates voltage and frequency due to the online double
conversion topology Power more servers than most similar UPSs due to
a 0.8 power factor Trust a leading manufacturer with decades of experience and
high quality standards: CE compliance certified by external
agency (CB report from the TUV). Get clear information on the UPS’ status and measurements
(load level, battery level, input/output voltage and frequency)
on a single screen with the new LCD interface. Easily communicate with the UPS through USB, RS232 serial
or over the network with the optional network card
(Network-M2). Relay cards or ModBus cards are also available. Eaton 9E is compatible with Eaton IPM Editions Software
which permits to integrate all major operating systems, leading
virtualisation environments and cloud orchestrations tools. The internal bypass allows service continuity in case of an
internal fault. A maintenance bypass is also available as
standard for easy maintenance of the UPS without powering
down critical systems. Make your installation more flexible with a combo input
(3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA. Extend runtime as you like by adding up to 4 external battery
modules (EBM). For extra-long runtime, XL models with internal
supercharger are also available at 3kVA, 10kVA and 20kVA.| Manufacture / Importer / Marketer | Vertex Power Solutions Pvt. Ltd. |
|---|---|
